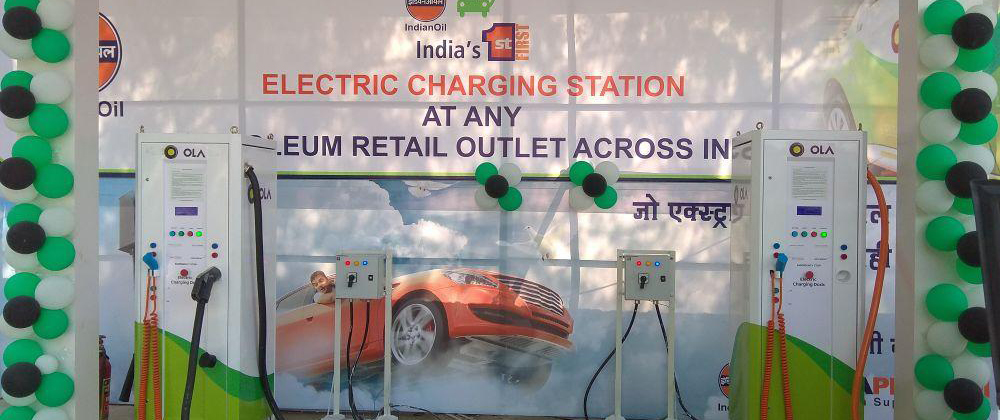

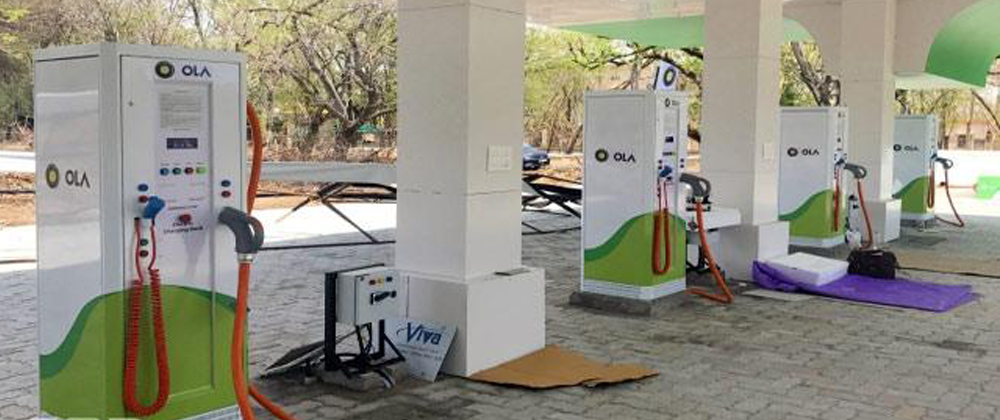

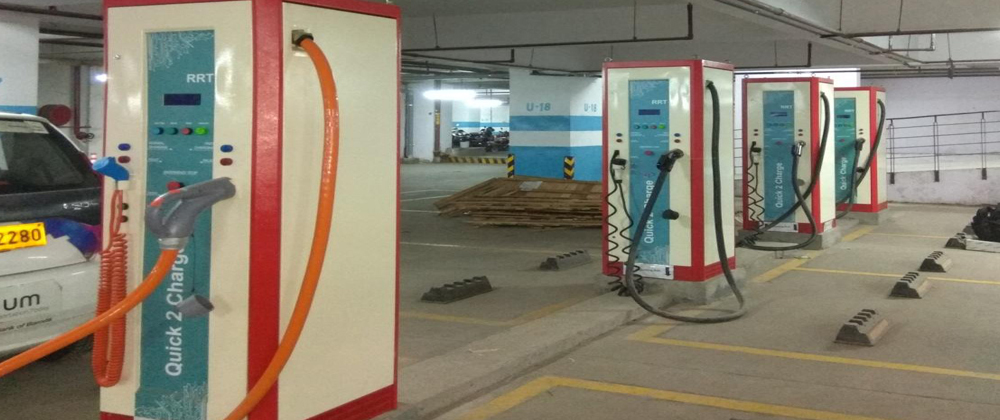

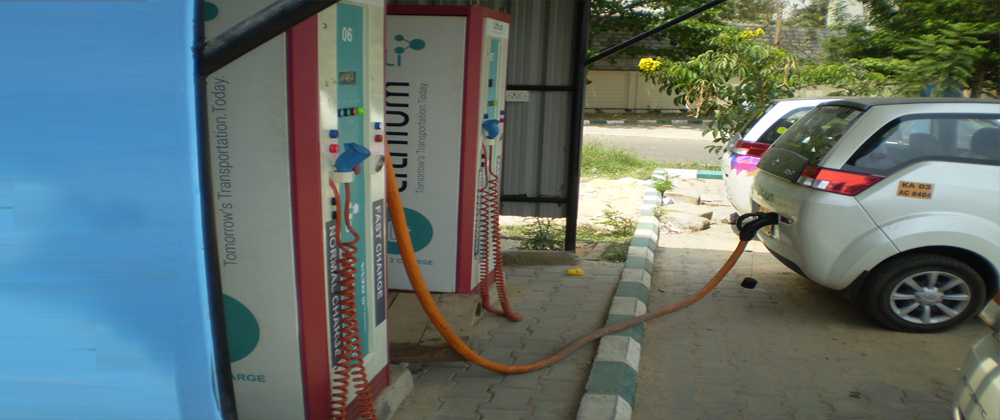

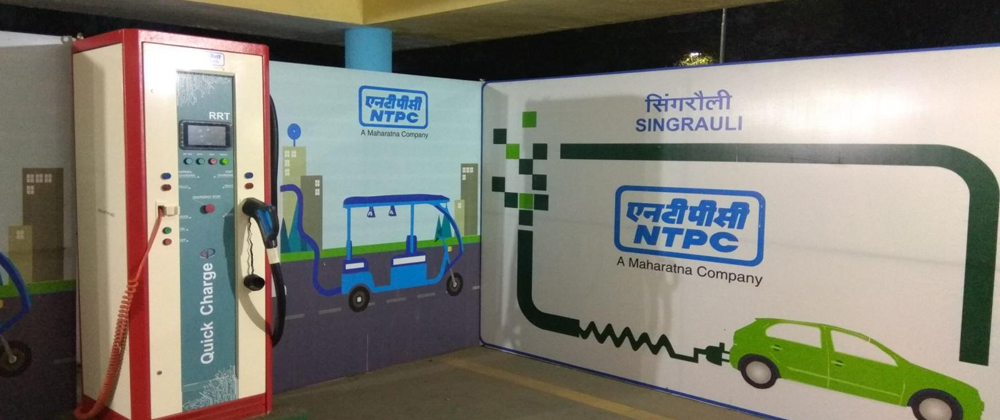

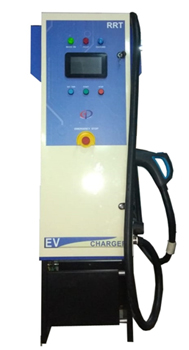

• Input: 415V AC, -10%/+15%, 50Hz + 5%, 3 Phase, 5-wire R,Y,B,N & Earth,
• Power Factor > 0.99
• No. of outputs :1
• Output Voltage: 40 to 100VDC
• Output power: 10kW
• Output current: 135A max
• Output Connector: GB/T 20234.3:2015 (DC fast charge)
• Ripple: Ripple: Voltage †1%, Current<2%
• Regulation: Voltage regulation 2%, Current regulation < †5A
• Efficiency: >92% typical
• Ambient: Temperature: 0 to 50°C, Humidity: 5% to 95%
• Protection & Safety: Input—Under/Over voltage, Output– Under/Over voltage, Overload, Short circuit, Surge, Earth fault at input & output, Input power fail, Emergency shut-down with alarm, Over temperature, Electric shock
• Cooling: Forced Air
• Visual Indication: LED for Fault, Healthy, Charging
• Ingress Protection: IP-54
• Mounting: Floor Mounting
• Dimension: 450 (W) x 250 (D) x 1650 (H) mm
• Communication: CAN 2.0B
• OCPP

• Input: 415V AC, -10%/+15%, 50Hz + 5%, 3 Phase, 5-wire R,Y,B,N & Earth,
• Power Factor > 0.99
• No. of outputs :1
• Output Voltage: 40 to 100VDC
• Output power: 15kW
• Output current: 200A max
• Output Connector: GB/T 20234.3:2015 (DC fast charge)
• Ripple: Ripple: Voltage † 1%, Current <Z 2%
• Regulation: Voltage regulation 2%, Current regulation < 5A
• Efficiency: > 92% typical
• Ambient: Temperature: 0 to 50°C, Humidity: 5% to 95%
• Protection & Safety: Input—Under/Over voltage, Output– Under/Over voltage, Overload, Short circuit, Surge, Earth fault at input & output, Input power fail, Emergency shut-down with alarm, Over temperature, Electric shock
• Cooling: Forced Air
• Visual Indication: LED for Fault, Healthy, Charging
• Ingress Protection: IP-54
• Mounting: Floor Mounting
• Dimension: 450 (W) x 250 (D) x 1650 (H) mm
• Communication: CAN 2.0B

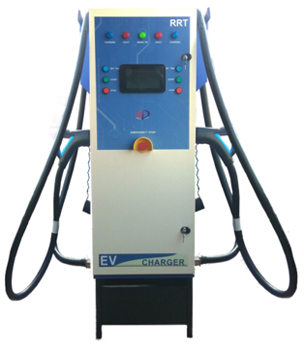

• Input: 415V AC, -10%/+15%, 50Hz + 5%, 3 Phase, 5-wire R,Y,B,N & Earth,
• Power Factor > 0.99
• No. of outputs :2
•                   Output -1        Output-2
• Voltage: 40 to 100VDC 40 to 100VDC
• Power : 10kW 10kW
• Current: 135A max 135A max
• Output Connector GB/T 20234.3:2015 GB/T 20234.3:2015
• Ripple: Ripple: Voltage + 1%, Current < 2%
• Regulation: Voltage regulation 2%, Current regulation < † 5A
• Efficiency: > 92% typical
• Ambient: Temperature: 0 to 50°C, Humidity: 5% to 95%
• Protection & Safety: Input—Under/Over voltage, Output– Under/Over voltage, Overload, Short circuit, Surge, Earth fault at input & output, Input power fail, Emergency shut-down with alarm, Over temperature, Electric shock
• Cooling: Forced Air
• Visual Indication: LED for Fault, Healthy, Charging
• Ingress Protection: IP-54
• Mounting: Floor Mounting
• Dimension: 450 (W) x 250 (D) x 1650 (H) mm
• Communication: CAN 2.0B
• OCPP

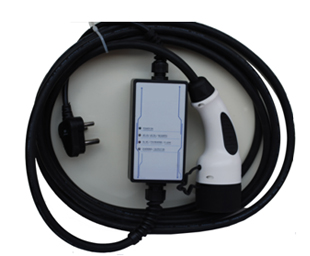

• Input: 85V to 265V AC, Single Phase, AC L, N, E, 50Hz + 5%
• Operating Current :16A max.
• Operating Temperature : -30 to 55° C
• Storage Temperature :-30 to 85° C
• Short Circuit Protection: Provided
• Inrush current withstanding capacity: Upto 30A for <0.75Sec
• Current: 135A max 135A max
• Under Voltage Protection: 85VAC – output trip, auto reset at 95VAC
• Over Voltage Protection : 265VAC - output trip, auto reset at 260VAC
• Earth leakage protection sensitivity :30mA, t<0.02 Sec
• Phase and Neutral interchange protection : Output trip
• Phase and Neutral interchange protection : Output trip
• Power ON: Green LED – Solid glow
• Earth leakage : Red LED – checks earth leakage and trips, auto reset in 2 seconds, sequence goes on for 5 times before shutdown
• Other LED indications - Amber: OV-fast blink/ UV- slow blink, No earth – Solid, Blue : Output OK-solid, Charging – blink
• Service Place : Indoor / Outdoor
• Enclosures and protection : IP54
• Enclosure Dimension : 155 mm (L) x 95 mm (W) x 50 mm (H)
• Total length of charge cable: 5m

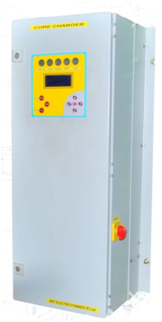

Salient Features

• Local / Remote operation / monitoring through CAN bus• Local / Remote operation / monitoring through CAN bus
• Voltage, current, power , energy measurements displayed on LCD / available on CAN
• User selectable 4 built-in profile for charging different types of batteries / charge duration either through CAN bus or from Keypad/LCD

Charging profile

• Profile 1: Vo=57V, Io=100A, T=20Sec, Profile 2: Vo=57V, Io=150A, T=15Sec,
• Profile 3: Vo=54V, Io=200A, T=10Sec
• Profile 4: Vo=65V, Io=100A, T=30Sec
• Selectable through MENU Key before Start.

Specification

• Input voltage: 63V to 97V DC
• Input Current: 228A max.
• Output Voltage: 42 to 65V DC
• Output Current: 200A max
• Soft Start time: 5 sec. max.
• Efficiency: > 89%
• Voltage Static Regulation (input and load): +/- 2%
• Voltage Dynamic Regulation: < 10%, recovery time <1ms
• Current regulation: +/- 2%
• Protection: DC Input Voltage Low 63V, DC Input Voltage High 98V, Overload/Short circuit 110%, Reverse Polarity at input and output, Inrush current limit
• Metering/Fault: LCD metering Vin, Vo, Io, Energy and Time and Fault detail
• Status indication: LEDs for Supply ON, Output ON, Charging, Bty Rev/ No Bty, Fault.
• Insulation resistance: >5 MW at 500V DC
• Dielectric Strength: 1.5KV/50Hz AC for 1 min.
• Ambient Temperature: 0 to 50 deg C
• Humidity: 95% RH (non-condensing)
• Degree of Protection: IP-55
• Communication: CAN Bus and RS232C
• Dimension : 800mm (L) x 390mm(W)x 370mm(H)
