Products



ELECTRIC VEHICLE CHARGERS


DC Fast Charger,10kW

DC Fast Charger, 10kW

  • Input: 415V AC, -10%/+15%, 50Hz + 5%, 3 Phase, 5-wire R,Y,B,N & Earth,
  • Power Factor > 0.99
  • No. of outputs :1
  • Output Voltage: 40 to 100VDC
  • Output power: 10kW
  • Output current: 135A max
  • Output Connector: GB/T 20234.3:2015 (DC fast charge)
  • Ripple: Ripple: Voltage + 1%, Current <2%
  • Regulation: Voltage regulation 2%, Current regulation < + 5A
  • Efficiency: > 92% typical
  • Ambient: Temperature: 0 to 50°C, Humidity: 5% to 95%
  • Protection & Safety: Input—Under/Over voltage, Output– Under/Over voltage, Overload, Short circuit, Surge, Earth fault at input & output, Input power fail, Emergency shut-down with alarm, Over temperature, Electric shock
  • Cooling: Forced Air
  • Visual Indication: LED for Fault, Healthy, Charging
  • Ingress Protection: IP-54
  • Mounting: Floor Mounting
  • Dimension: 450 (W) x 250 (D) x 1650 (H) mm
  • Communication: CAN 2.0B
  • OCPP

DC Fast Charger, 15kW

DC Fast Charger,15kW
  • Input: 415V AC, -10%/+15%, 50Hz + 5%, 3 Phase, 5-wire R,Y,B,N & Earth,
  • Power Factor > 0.99
  • No. of outputs :1
  • Output Voltage: 40 to 100VDC
  • Output power: 15kW
  • Output current: 200A max
  • Output Connector: GB/T 20234.3:2015 (DC fast charge)
  • Ripple: Ripple: Voltage + 1%, Current <2%
  • Regulation: Voltage regulation 2%, Current regulation <†5A
  • Efficiency: > 92% typical
  • Ambient: Temperature: 0 to 50°C, Humidity: 5% to 95%
  • Protection & Safety: Input—Under/Over voltage, Output– Under/Over voltage, Overload, Short circuit, Surge, Earth fault at input & output, Input power fail, Emergency shut-down with alarm, Over temperature, Electric shock
  • Cooling: Forced Air
  • Visual Indication: LED for Fault, Healthy, Charging
  • Ingress Protection: IP-54
  • Mounting: Floor Mounting
  • Dimension: 450 (W) x 250 (D) x 1650 (H) mm
  • Communication: CAN 2.0B

DC Fast Charger, 20kW

DC Fast Charger,15kW
  • Input: 415V AC, -10%/+15%, 50Hz + 5%, 3 Phase, 5-wire R,Y,B,N & Earth,
  • Power Factor > 0.99
  • No. of outputs :2
  •                   Output -1        Output-2
  • Voltage: 40 to 100VDC 40 to 100VDC
  • Power : 10kW 10kW
  • Current: 135A max 135A max
  • Output Connector GB/T 20234.3:2015 GB/T 20234.3:2015
  • Ripple: Ripple: Voltage + 1%, Current < 2%
  • Regulation: Voltage regulation 2%, Current regulation <+ 5A
  • Efficiency: > 92% typical
  • Ambient: Temperature: 0 to 50°C, Humidity: 5% to 95%
  • Protection & Safety: Input—Under/Over voltage, Output– Under/Over voltage, Overload, Short circuit, Surge, Earth fault at input & output, Input power fail, Emergency shut-down with alarm, Over temperature, Electric shock
  • Cooling: Forced Air
  • Visual Indication: LED for Fault, Healthy, Charging
  • Ingress Protection: IP-54
  • Mounting: Floor Mounting
  • Dimension: 450 (W) x 250 (D) x 1650 (H) mm
  • Communication: CAN 2.0B
  • OCPP

Type 2 EVSE

DC Fast Charger,15kW
  • Input: 85V to 265V AC, Single Phase, AC L, N, E, 50Hz + 5%
  • Operating Current :16A max.
  • Operating Temperature : -30 to 55° C
  • Storage Temperature :-30 to 85° C
  • Short Circuit Protection: Provided
  • Inrush current withstanding capacity: Upto 30A for <0.75Sec
  • Current: 135A max 135A max
  • Under Voltage Protection: 85VAC – output trip, auto reset at 95VAC
  • Over Voltage Protection : 265VAC - output trip, auto reset at 260VAC
  • Earth leakage protection sensitivity :30mA, t<0.02 Sec
  • Phase and Neutral interchange protection : Output trip
  • Phase and Neutral interchange protection : Output trip
  • Power ON: Green LED – Solid glow
  • Earth leakage : Red LED – checks earth leakage and trips, auto reset in 2 seconds, sequence goes on for 5 times before shutdown
  • Other LED indications - Amber: OV-fast blink/ UV- slow blink, No earth – Solid, Blue : Output OK-solid, Charging – blink
  • Service Place : Indoor / Outdoor
  • Enclosures and protection : IP54
  • Enclosure Dimension : 155 mm (L) x 95 mm (W) x 50 mm (H)
  • Total length of charge cable: 5m

DC-DC Converter

DC Fast Charger,15kW
Salient Features
  • Local / Remote operation / monitoring through CAN bus• Local / Remote operation / monitoring through CAN bus
  • Voltage, current, power , energy measurements displayed on LCD / available on CAN
  • User selectable 4 built-in profile for charging different types of batteries / charge duration either through CAN bus or from Keypad/LCD
Charging profile
  • Profile 1: Vo=57V, Io=100A, T=20Sec, Profile 2: Vo=57V, Io=150A, T=15Sec,
  • Profile 3: Vo=54V, Io=200A, T=10Sec
  • Profile 4: Vo=65V, Io=100A, T=30Sec
  • Selectable through MENU Key before Start.
Specification
  • Input voltage: 63V to 97V DC
  • Input Current: 228A max.
  • Output Voltage: 42 to 65V DC
  • Output Current: 200A max
  • Soft Start time: 5 sec. max.
  • Efficiency: > 89%
  • Voltage Static Regulation (input and load): +/- 2%
  • Voltage Dynamic Regulation: < 10%, recovery time < 1ms
  • Current regulation: +/- 2%
  • Protection: DC Input Voltage Low 63V, DC Input Voltage High 98V, Overload/Short circuit 110%, Reverse Polarity at input and output, Inrush current limit
  • Metering/Fault: LCD metering Vin, Vo, Io, Energy and Time and Fault detail
  • Status indication: LEDs for Supply ON, Output ON, Charging, Bty Rev/ No Bty, Fault.
  • Insulation resistance: >5 MW at 500V DC
  • Dielectric Strength: 1.5KV/50Hz AC for 1 min.
  • Ambient Temperature: 0 to 50 deg C
  • Humidity: 95% RH (non-condensing)
  • Degree of Protection: IP-55
  • Communication: CAN Bus and RS232C
  • Dimension : 800mm (L) x 390mm(W)x 370mm(H)

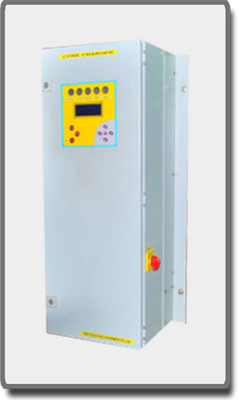

DC FAST CHARGER WITH SINGLE CHARGING GUN

RRT
Features
  • External Charging Profile through CAN
  • Regulated DC EV charging with combination of CVC or CCC
  • Mode 4 Charging
  • LCD display
  • Emergency stop Pushbutton
  • Visual Indicators — Mains On, Fault, Charging
  • Bill Printing optional
  • OCPP optional

Input
Voltage No. of Phase  Frequency Power Factor
415V AC,
-10%/+15%,		 3 Phase, 5-wire
(R,Y,B,N &Â Earth)		 50Hz + 5% > 0.99
Output
No. of outputs Power Voltage Current
1 10kW 48V / 72VDC 135A DC (Max)
  Connector: GB/T 20234.3Â (fast charge)
  Ripple: Voltage + 1%, Current <2%
Regulation Voltage regulation 2%, Current regulation < + 5A
Efficiency > 92% typical
Ambient Temperature: 0°C to 50°C, Humidity: 5% to 95%, Pressure: 86 to 106 kpa
Protection & Safety Input Under Voltage, Input Over voltage, Output over Voltage, Output Under Voltage, Overload, Short Circuit, Surge protection, Earth fault at input and output, Input power fail, Emergency shut-down with alarm, Over temperature, Protection against electric shock
Cooling Forced Air
Visual Indication Fault, Healthy, State of charge process through LCD display
Dimension in mm 450 (W) x 250 (D) x 1650 (H)
Ingress Protection IP-54
Communication CAN 2.0B

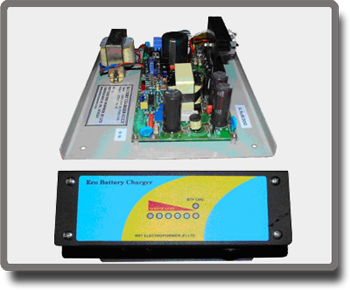

BATTERY CHARGER


RRT

SPECIFICATION
Input 190 to 264V AC, 1Phase, 50Hz
Output 225VDC/2.6A

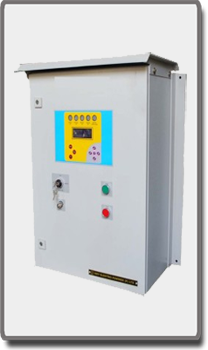

DC FAST CHARGING STATION


RRT
Specification
INPUT
Voltage    415V AC, +15%, -20%, 3 phase, 4-wire
Frequency 45-65Hz
Current 22.5A (per phase) for Fast Charging &15A/5A (single phase) for Normal Charging Â
OUTPUT
Voltage 48V DC (40-68V) for 48V battery pack or 72V DC (60-90V) for 72V battery pack, selectable through CAN Â
Current 200A @ 68VDC or 130A @90VDC
Output Power 13.6kW
Preset charge time in min 15,30,45,60,75,90, F (selectable through Time Set pushbutton on the front panel )
Regulation 2%
Efficiency 87%
Ambient 50 deg C
Humidity 95% RH, non-condensing
Cooling Forced Air
Ingress Protection IP-33

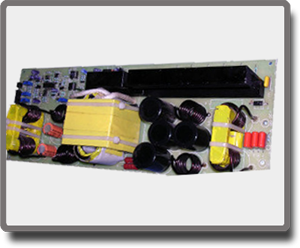

1250W SINGLE OUTPUT DC-DC CONVERTER



RRT
FEATURES
Wide input voltage
Very high efficiency
Natural cooling
Parallel Operation
Fixed frequency
Protection with indication: Overload/Short Circuit, Input voltage low &  high, tripping with auto recovery, Output voltage low & high, tripping for voltage high,   with manual reset
SPECIFICATION
Input voltage 42V to 57V DC *
Output 25V DC* @ 50A
Output Power 1250W
Voltage regulation +/- 0.5%
Efficiency >95%
Ripple 100mV
Overload/Short Circuit 105%
Dielectric strength 1.5KV/50Hz AC for 1 min.
EMC Telecom standards
*Other voltages on specific request
Wide input voltage
Very high efficiency
Natural cooling
Voltage dimming by remote operation
Fixed frequency
Protection with indication: Overload/Short Circuit, Input voltage low & high, tripping with auto recovery- Output voltage low & high, tripping for voltage high with manual reset
SPECIFICATION
Input voltage 90V to 140V DC*
Output 32V* DC @ 9.375A (Dimming to 16V selectable)
Output Power 300W
Voltage regulation +/- 0.5%
Efficiency >95%
Ripple 100mV
Overload/Short circuit 105%
Dielectric strength 1.5KV/50Hz AC for 1 min.
EMC Telecom standards
*Other voltages on specific request
Features
Wide input voltage
Very high efficiency
Natural cooling
Overload/Short Circuit protection
Low Cost
Three outputs including one isolated output
Fixed frequenc
SPECIFICATION
Input voltage 36V to 65V DC*
Output +15V/-15V DC* @ 150mAÂ &Isolated +17V* @ 150mA
Output Power 7W
Voltage regulation +/- 2%
Efficiency >75%
Ripple 25mV
Overload/Short circuit 110%
Dielectric strength 1.5KV/50Hz AC for 1 min.
EMC Telecom standards
 *Other voltages on specific request

DC-DC CONVERTER BASED BATTERY CHARGER

RRT
Specification
Input voltage 63V to 97V DC
Input Current 228A max.
Output Voltage 42 to 65V DC
Output Current 200A max
Soft Start time  5 sec. max.
Efficiency > 89%
Voltage Static Regulation (input and load) +/- 2%
Voltage Dynamic Regulation < 10%, recovery time < 1ms
Current regulation: +/- 2%
Protection DC Input Voltage Low 63V,  DC Input Voltage High 98V, Overload/Short circuit 110%,  Reverse Polarity at input and output, Inrush current limit
Metering/Fault LCD metering Vin, Vo, Io, Energy and Time and Fault detail
Status indication LEDs for Supply ON, OutputON, Charging, Bty Rev/ No Bty, Fault.
Ambient Temperature  0 to 50 deg C
Humidity 95% RH (non-condensing)

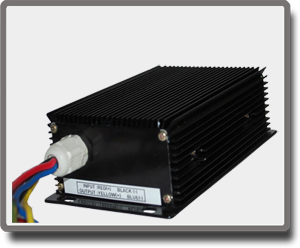

DC-DC CONVERTER FOR BATTERY OPERATED VEHICLES

RRT
FEATURES
  • Switch mode buck converter
  • Fully enclosed Naturally cooled
  • Panel mountable
Specification
Input 40 to 57VDC
Output 12VDC/10A
Regulation 1%
Ripple < 250mV
Efficiency 95%
Protection Overload/Short circuit 120% hiccup mode with auto recovery,  Fuse at input
Dimensions in mm 48 (H) x 95 (W) x 165 (L)
Ambient 50 deg C
Enclosure IP55
Â

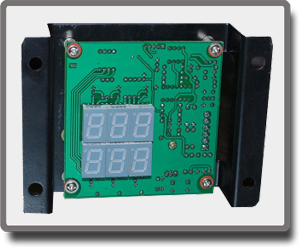

DIGITAL VOLT AMPERE METERS

RRT




RRT
SPECIFICATION
Power supply Input 220VAC, 50Hz, single phase
No of Digits 3
Voltage range 0 to 99.9VDC
Current Range Upto 999A (800A @120mV)
Resolution Current – 3.9A Voltage – 0.39V
Accuracy 0.39%
Dimensions in mm  70(H) x 133(W) x 100 (L)


ELECTRONIC SOFT STARTER FOR DC MOTOR

RRT
SPECIFICATION
Input Voltage 220V DC (187 to 260 VDC)
Output Voltage 0 to 220V DC
Soft start time 8Â Sec
Output Power Upto 10KW
Output current (nominal) 47.5A
Starting current 100A (Max.)
Efficiency > 96%
Display (LCD) Input voltage, output voltage, output  current,  Field current, Motor rating, Local/Remote/Off
Field Control Upto 20% reduction through Field Trimming Resistor
Field Current 2A
Current Signal 4-20mA proportional to Armature current
Remote Remote Control, Remote faultmonitoring, Remote ON/FF, Remote current measurement  through 4-20Ma Signal
Protection DC under Voltage, DC over Voltage,  Overload, Short Circuit, Field fail, Inrush bypass contactor fault, Bypass contactor fault, IGBT Temperature high, Reverse Polarity at the input
Operating temperature -5 to +50 deg C
Humidity 95% max (non –condensing)
Degree of Protection IP-55
FEATURES
Upto 10KW at 220V DC
Output current 100A max
IGBT based
In-rush current limit
Reverse polarity protection
Electromagnetic compatibility
DSP controlled, Menu driven
4-20mA armature current
Single soft starter for various motor ratings – Configurable for lower ratings

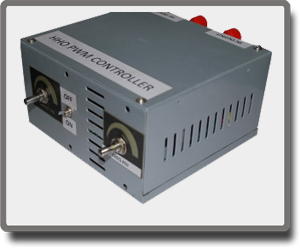

HHO PWM CONTROLLER

RRT
Input Voltage 9 to 16V DC
Output Voltage Input voltage less 1Vmin
Output Current 2.4A, 3.6A, 4.8A +/- 5%
Efficiency > 97%
Ripple < 1%
Protection Input DC under voltage at 8.5V DC, Alternator interlock
Ambient Temperature 50 deg C

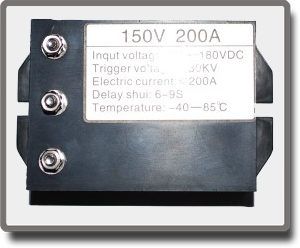

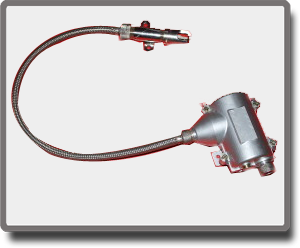

IGNITERS

RRT
RRT

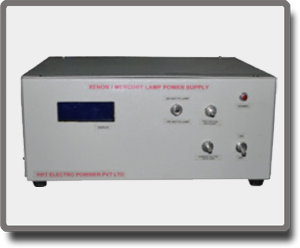

XENON/MERCURY LAMP POWER SUPPLY

RRT
SPECIFICATION
Input 230V AC, +/- 10%, 50 Hz, 1 Phase
Output: Output-1: 17V to 70V DC, 200W (150W for 150W lamp), Output-2: 24VDC, 0.5A
Lamp ignition voltage Upto 25kv ,110V DC
Output Current Adjust Potentiometer on front panel for output: 1 only
Output Ripple 0.5%
Protections Current Limit, Short Circuit
Indications Power ON
Metering LCD meter for indicating output voltage, output current, Lamp Hour, Total Hour
Ambient 50 deg C,
Cooling Forced air
Terminations: Input and output terminations on rear Panel

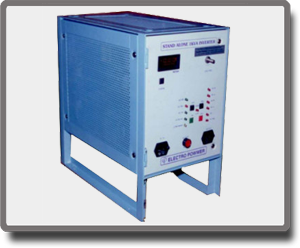

TELECOM INVERTER

RRT
SPECIFICATION
I N P U T Voltage 42 to 57 V DC
Current 22A Nominal (Max 28A)
Inrush current < 270 A, 180A typical
Psophometric Noise < 4mV without battery
Â
O
U
T
P
U
 T
Voltage (Default) 230V AC
Voltage range 210 to 230V AC
Voltage static regulation +/- 2%
Voltage dynamic regulation < 10% with battery connected, recovery < 100ms
Current 4.34A
Overload capability 4.6A for 1 hour
Soft Start time < 5 sec.
Distortion < 3%

Â
 Â
G
E
N
E
R
A
L
Efficiency > 85%
Acoustic noise < 60dBA at 1 m distance
Lightning immunity 6KV. 2KA
Dielectric strength 2KV input-output/input-ground
Insulation resistance >5 MW at 500V DC
Dimension (mm) 260 (W) x 450 (D) x 430 (H)
Weight 32 Kg.
EMC G/EMI-01/02 Jun 2000
Indication Input/Output voltage; Input/Output current; frequency, DC ON                                             ,DC Lo*DC Reverse, DC Hi*, AC ON,  AC Lo Load on Inverter, AC Hi, Load on Stand-by, OL , LF/HF
Ambient Temperature 55 degree C
RH 95% non-condensing

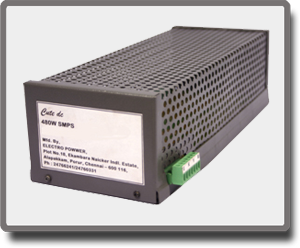

480W SINGLE OUTPUT SMPS

480W SINGLE OUTPUT SMPS

FEATURES
Overload/Short circuit protection
Natural cooling
Fixed switching frequency
Low cost

Â

Â



SPECIFICATION
Input voltage 230V+/-10% AC, 1 Phase, 50Hz
Output Power 480W
DC output Voltage

24V

48V
Output Current

20A

10A
Voltage Adjustability

21.5V to 26.5V

43V to 52.8V
Regulation

0.5%

0.5%
Efficiency

>81%

>82%
Ripple

<50mV

<60mV
Overload/Short circuit 110% hiccup mode with auto recovery
Dielectric strength 1.5KV/50Hz AC for 1 min.
Dimension 115 mm(W) x 300 mm (D) x 85 mm (H)

1350W Single Output Micro-controller Based SMPS With Active Power Factor Correction


FEATURE
Wide input voltage
Active Power Factor Correction
Power factor better than 0.98
Low input current harmonics
Very high efficiency
Natural cooling
CV-CC operation
Parallel Operation
Remote operation & monitoring
RS-485 serial remote operation
Protection with indication: Overload/Short Circuit, Input voltage low & high, tripping with auto recovery, Output voltage low & high, tripping for voltage high with manual reset
SPECIFICATION
Input voltage 150V to 275V AC, 1 Phase, 50Hz
Power Factor 0.98
Input current harmonics 5%
DC Output 54V* (Adj 48V to 55.2V) @Â 25A
Output Power 1350W
Voltage regulation +/- 1%
Efficiency >90%
Ripple 200mV
Overload/Short circuit 105%
Dielectric strength 1.5KV/50Hz AC for 1 min
EMC Telecom standards
*Other voltages on specific request

Â

Â


5400W Single Output Micro-controller Based SMPS With Active Power Factor Correction


FEATURES
Wide input voltage
Active Power Factor Correction
Power factor better than 0.98
Low input current harmonics
Very high efficiency
Forced cooling
CV-CC operation
Parallel Operation
Remote operation & monitoring
RS-485 serial remote operation
Protection with indication: Overload/Short Circuit, Input voltage
low & high, tripping with auto recovery, Output voltage low &
high, tripping for voltage high with manual reset

Â

SPECIFICATION
Input voltage 260V to 476V AC, 3 Phase, 50Hz
Power Factor 0.98
Input current harmonics 5%
DC Output 54V* (Adjustable 48V to 55.2V) @Â 100A
Output Power 5400W
Voltage regulation +/- 1%
Efficiency >90%
Ripple 200mV
Overload/Short circuit 105%
Dielectric strength 1.5KV/50Hz AC for 1 min.
EMC Telecom standards
*Other voltages on specific request

Â


240W SINGLE OUTPUT SMPS


FEATURES
Wide input voltage
Overload/Short circuit protection
Forced cooling
Fixed switching frequency
Low cost
SPECIFICATION
Input voltage 175V to 264V AC, 1 Phase, 50Hz (OR)
228V to 370V DC
Output Power 240W
Overload/Short circuit 110% hiccup mode with auto recovery
Dielectric strength 1.5KV/50Hz AC for 1 min.
EMC Telecom standards
Dimension 160 mm(W) x 150 mm (D) x 85 mm (H)


240W Single Output SMPS

FEATURES
Wide input voltage
Overload/Short circuit protection
Natural cooling
Fixed switching frequency
Low cost
SPECIFICATION
Input voltage 170V to 264V AC, 1 Phase, 50Hz
(OR) :Â Â Â 220V to 370V DC
Output Power 120W
Overload/Short circuit 110% hiccup mode with auto recovery
Dielectric strength 1.5KV/50Hz AC for 1 min.
15W Multiple Output SMPS
FEATURES
Universal AC input
Overload/Short circuit protection
Natural cooling
Fixed switching frequency
Three outputs

Â

SPECIFICATION
Input voltage 90V to 275V AC, 1 Phase, 50Hz (OR)120V to 388V DC
DC Output +5V/1.5A, +12V/300mA, -12V/300mA
Output Power 15W
Voltage regulation +/- 2%
Efficiency 80%
Ripple < 10mV
Overload/Short circuit 120% hiccup mode with auto recovery
Dielectric strength 1.5KV/50Hz AC for 1 min.
EMC Telecom standards

Â

DC Fast Charging Station


Specification
INPUT
Voltage    415V AC, +10%, -15%, 3 phase, , 4-wire
Frequency 45-65Hz
Current 22.5A (per phase) for Fast Charging &15A/5A (single phase) for Normal Charging

Â

OUTPUT
Voltage 48V DC (40-68V) for 48V battery pack or72V DC (60-90V) for 72V battery pack, selectable through CAN

Â

Current 200A @ 68VDC or 130A @90VDC
Output Power 13.6kW
Preset charge time in min 15,30,45,60,75,90, F (selectable through Time Set pushbutton on the front panel )
Regulation 2%
Efficiency 87%
Ambient 50 deg C
Humidity 95% RH, non-condensing
Cooling Forced Air
Ingress Protection IP-33

Â



DESIGNED BY: TRIVAM TECHNO SOLUTIONS | Copy Rights Reserved:2016
